Model based investigations of electrochemical double layers, porous catalysts in fuel cells, and battery materials
The behavior of electrochemical systems is widely investigated with continuum physics models. Applications range from single crystal electrochemistry to lithium batteries and fuel cells, from biological nano-pores to electrolysis and corrosion science, and further. The common basis for all application is the theory of non-equilibrium thermo-electrodynamics [1,2]. At the Weierstraß-Institute general models for electrochemical systems are systematically derived. Asymptotic analysis methods are further employed to derived reduced non-equilibrium models for various electrodes and electrolytes, and the corresponding boundary conditions.Metal/electrolyte interface
A detailed model for a general electrolytic mixture was developed, which may adsorb and react on a metal surface. It is based on coupled volume and surface thermodynamics [3] where we account for adsorption and solvation of the ionic species.

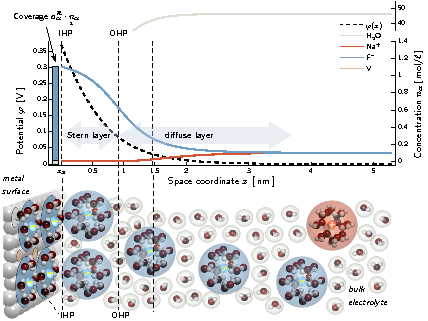

Figure 1: Computed structure and a resulting sketch of the Ag/0.1M NaF interface.

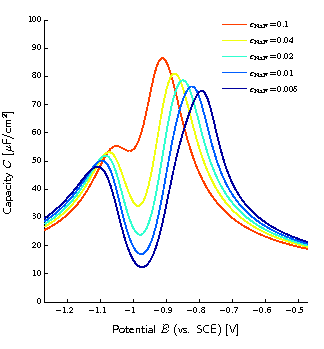

Figure 2: Computed capacity of the Ag(110) 0.1M NaF interface.
Electron transfer reactions
Electron transfer reactions at the interface between an electrolyte and an electrode are the pivotal phenomenon of all electrochemical systems for storage and conversion of energy. The Butler-Volmer equation describes the dependence of the reaction rates on a potential difference across the interface and on the concentrations of the different species at the interface. At WIAS, new boundary conditions of generalized Butler-Volmer type were derived based on non-equilibrium thermodynamics [5]. The predictive capabilities of this theory are validated for various, well defined electrochemical cells. and is applied to complex systems like batteries and fuel cells.

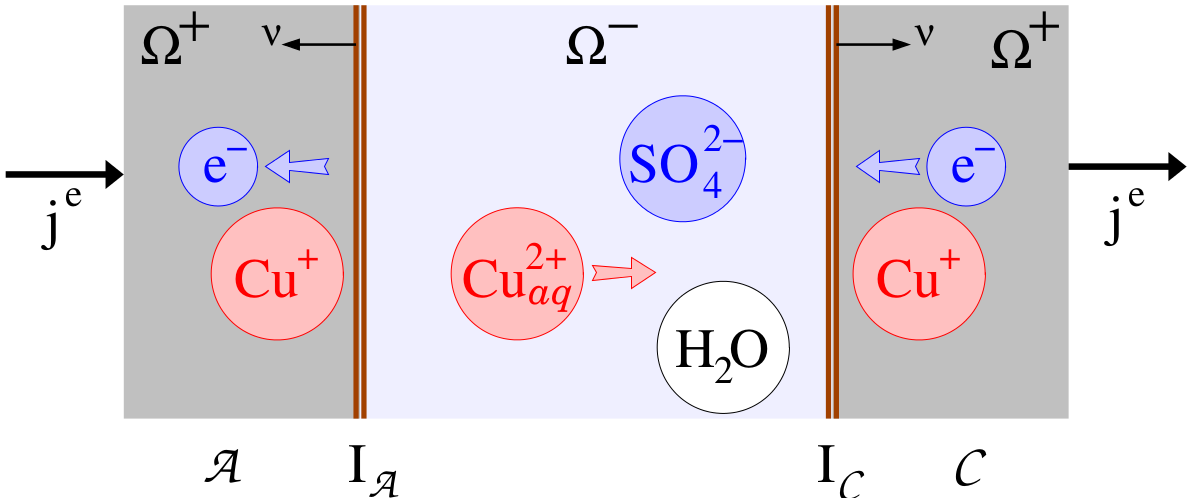

Figure 3: Experimental setup copper deposition.

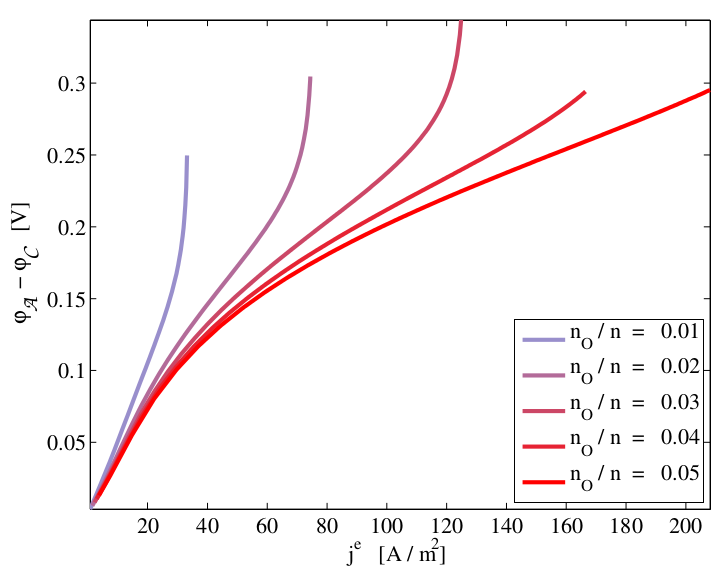

Figure 4: Current-Voltage diagram for the electro-deposition of metal with different electrolyte concentrations. At high imposed currents diffusional transport in the electrolyte causes a lack of reacting ions at the electrode, leading to a blow-up of the potential.
Thermodynamically consistent discretizations
The numerical solution of generalized Poisson-Nernst-Planck systems like the one derived in [5] in higher space dimensions and general geometries requires the development of specifically tailored discretization approaches which have the potential to preserve the thermodynamic properties of the continuous problem. For this purpose, a generalization of the Scharfetter-Gummel upwind finite volume scheme successfully employed in the field of semiconductor device simulation to the case Poisson-Nernst-Planck problems with ion volume constraints and solvent balancing has been proposed [6].

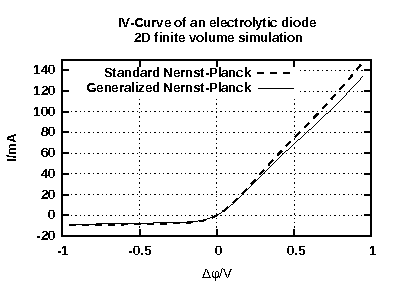

Figure 5: Simulated IV curves for an electrolytic diode. Difference between standard and improved Nernst-Planck models.
Modeling of transport and reaction processes for magnesium-air batteries
As magnesium is highly abundant, comparably cheap and sufficiently reactive, rechargeable magnesium air batteries are an interesting option for large scale energy storage. The development of strategies for the realization of this battery type is the subject of the research network MgLuft which is funded by the German Ministry of Education and Research. The WIAS subproject is concerned with the model based interpretation of flow cell experiments supporting the acquisition of transport data in organic electrolytes and information or reaction kinetics [7] and the modeling of transport and reaction processes in the electrodes of such a cell.

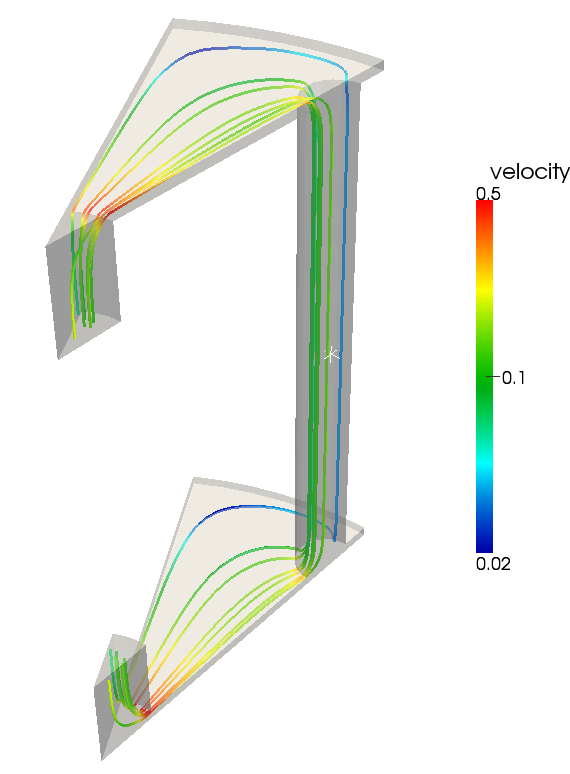

Figure 6: Calculated streamlines of electrolyte flow in an experimental flow cell.
